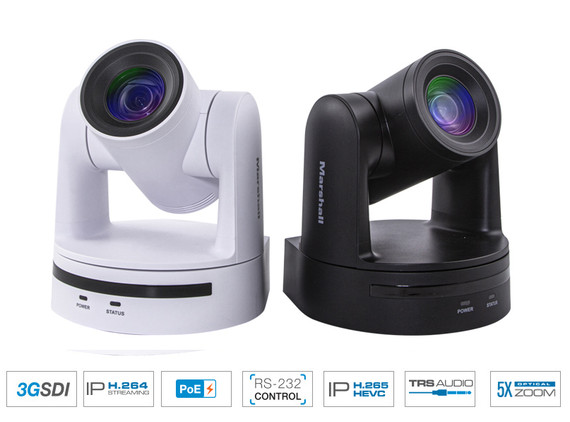

Marshall Electronics CV605-BK - 5x HD60 IP PTZ Camera

No reviews yet

Weight: 9.30 LBS

$699.00

The CV605 5X optical zoom 3GSDI camera utilizes a professional grade 2 Megapixel sensor to capture crisp HD video starting at a wide-angle 85° and up to 1920x1080p resolution at 60fps. Multiple available outputs include 3GSDI and IP (H.265/H.264). Marshall's straight forward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional A/V applications. CV605-BK/WH can be setup through the one-cable to camera setup which uses one Ethernet (CAT) cable to carry power, video, audio, and control over IP.

Ultra-Wide 85° with 5x Optical Zoom Range

The wide-angle optical zoom lens offers an impressive 85-degree angle-of-view through 20-degree (15mm) with smooth transition and an additional 10x digital zoom range.

3GSDI + IP (Ethernet) Workflow Flexibility

CV605 offers low latency 3GSDI (BNC) output as well as IP interface with multiple protocol supported. An IP interface provides easy one-cable setup with ethernet (Cat) cable handling video, audio, control and PoE (power).

Low-light Sensitivity

The CV605 PTZ camera operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

One Cable to Camera

One cable to camera provides up to HD video, audio, control, and power (PoE) over one cable with IP (H.265/H.264) and 3GSDI simultaneous outputs with audio embedding.

2 Megapixel (HD) sensor
5X Optical Zoom (3~15mm) - starting at 85° AOV
HD Resolution: 1920x1080p, 1920x1080i & 1280x720p
Resolution/Framerate choices:
- 1920x1080p at 60/59.94/50/30/29.97/25fps
- 1920x1080i at 60/59.94/50fps
- 1280x720p at 60/59.94/50/30/29.97/25fps
Low Illumination capability at 0.5Lux (F1.8) for challenging environments
3G-SDI (BNC) and IP (H.265/H.264) with RS232 via RJ45
Ethernet IP supports video, audio, control, and PoE (IEEE802.3af) over one Cat cable
Control Options: IR remote, GUI, VS-PTC-200 (RS232/RS422), VS-PTC-IP (IP/RS232/RS422) or Custom
3.5mm audio (Line or Mic level) input (AAC, MP3, G.711A compression)
