Miniature Camera Size

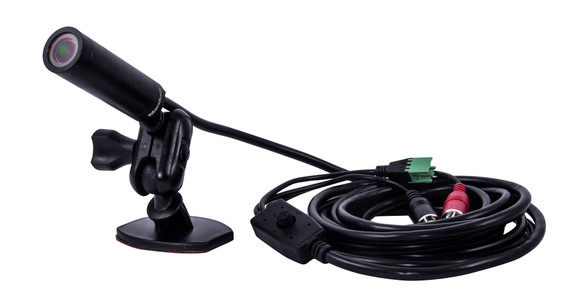

The Marshall CV226 can be positioned in very discreet locations with the ability to withstand dirty, dusty, and wet environments. Despite its compact form factor, the CV226 produces reliable crystal clear video over full-size 3G/HD-SDI (BNC) in Progressive or Interlaced resolutions up to 1920x1080. As shown with the optional
CVM-6 accessory mount.
CV226 specifications
| Imaging Sensor |
2.5 Megapixel 1/2.86" sensor (4:2:2 color) |
| Total Pixels |
1981 (H) x 1288 (V) / 2,551,528 (Pixels) |
| Active Pixels |
1944 (H) x 1212 (V) / 2,356,128 (Pixels) |
| Pixel Size |
2.75 (H) μm x 2.75 (V) μm |
| Scanning System |
16:9 Progressive Scan |
| Video Output |
3G/HD-SDI |
| Resolutions-Framerates |
1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50/30/29.97/25 |
| Horizontal TV |
More than 1000 TVL |
| Lens Mount |
3.6mm F2.0 M12 Mount - interchangeable w/o cap |
| Electric Shutter |
Manual (1/30 or 1/25~1/30,000 sec) |
| Auto White Balance |
AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain) |
| Mirror Image |
Mirror, Horizontal or Vertical Flip |
| Operating / Storage Temp |
-10°C~50°C |
| Operating Humidity |
IP67 rated; ability to submerge in water up to 45 minutes at a time |
| Power Supply |
12V DC 1.0A |
| Power |
12V DC (7VDC to 15VDC) Max 6W |
| Dimensions |
19.5 (W) x 19.5 (H) x 62.5 (D)mm |
| Weight |
Approx. 195g/0.42Lbs with cable |
Improved Sensors and Design
The Marshall CV226 utilizes the latest Marshall sensor and processor technology with a step-up in video performance and very low noise threshold, even in low-light conditions. Additionally, the CV226 contains a more durable and flexible RG6 coaxial breakout cable to withstand heavy use and bend rotation.
Versatile Placement & Mounting

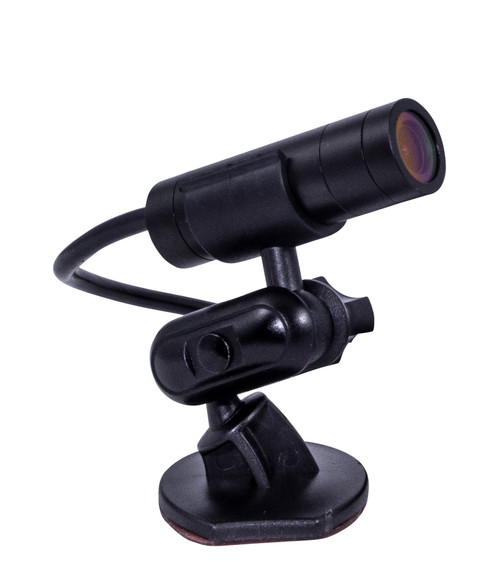

The Marshall CV226 includes a standard 1/4"-20 mount socket for use with tripods, gooseneck, and other camera mounting hardware. For enhanced flexibility, combine with the Marshall
CVM-6 Adhesive Camera Mount Kit and lipstick clip.
Flexible Control & Framerate Options
Easily select between 60, 59.94, 50, 30, 29.97, 25fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, the CV226 supports RS485 Visca control, allowing precision picture adjustments to be performed from control rooms, OB vans, and or broadcast trucks.
- Full-sized 3G/HDSDI (BNC) output
- 2.5 Megapixel (1/2.86") sensor (4:2:2 color)

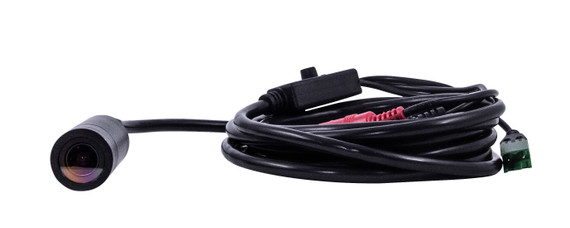

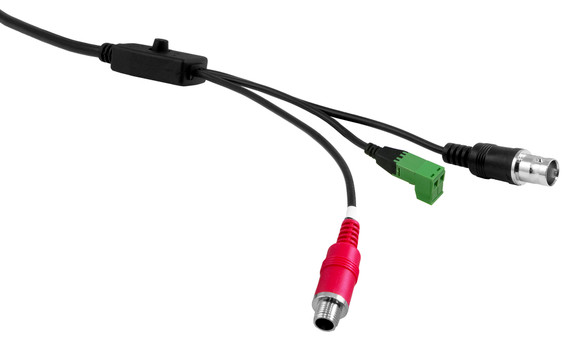

- 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power
- Interchangeable M12 lens with IP67 cap includes stock 3.6mm lens (72°H. AOV)
- IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
- Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
- Frame rates: 60, 59.94, 50, 30, 29.97, 25 fps
- Remote adjustable through RS485 (Visca) or OSD menu joystick
- CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
- Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
Applications:
The CV226 is suitable for use in indoor and outdoor applications including live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and more
Compatible HD Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV-4702.3-3MP |
2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126° |
| CV-4702.8-3MP-IR |
2.8mm, F2.6 3MP M12 lens; Horiz AOV = 100° |
| CV-4703.6-3MP |
3.6mm, F2.0 3MP M12 lens (stock); Horiz AOV = 72° |
| CV-4804.4-12MP |
4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 100° (1/1.8"), 70° (1/2.8") |
| CV-4706-3MP-IR |
6.0mm, F2.4 3MP M12 lens; Horiz AOV = 48° |
| CV-4708.0-3MP |
8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40° |
| CV-4712.0-3MP |
12.0mm, F1.8 3MP M12 lens; Horiz AOV = 33° |
| CV-4716.0-2MP |
16.0mm, F1.8 2MP M12 lens; Horiz AOV = 25° |
Compatible 5MP Prime Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| V-553.9-5MP-VIS-IR M12 |
3.9mm F2.0 5MP M12 Lens - 80° (1/3"), 96° (1/2.5"), 125° (1/1.7") |
| V-555.0-5MP-VIS-IR M12 |
5.0mm F2.0 5MP M12 Lens - 63° (1/3"), 75.5° (1/2.5"), 98° (1/1.7") |
| V-557.6-5MP-VIS-IR M12 |
7.6mm F2.0 5MP M12 Lens 40.4° (1/3"), 48° (1/2.5"), 60° (1/1.7") |
Compatible HD Varifocal Lens Options (M12):
| Part Number |
Description & Horizontal AOV |
| CV-2812-3MP |
2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = 108~30° |
| CV-0622-5MP |
6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = 46~16° |
