Blackmagic Mini Analog to SDI 12G Converter

No reviews yet
Weight: 2.00 LBS
$545.00

Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

Download Manual Download Software

Price

$545

Connections

SDI Video Outputs

2 x 12G-SDI outputs.

Analog Video Inputs

Composite, Y/C or Component.

Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.

Analog Audio Inputs

2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.

Digital Audio Inputs

4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.

Multi Rate Support

SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.

Updates and Configuration

USB or Ethernet.

Reclocking

Yes

Teranex Mini Analog to SDI 12G

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p25, 1080p29.97, 1080p50, 1080p59.94

Ultra HD Video Standards

2160p25, 2160p29.97, 2160p50, 2160p59.94

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2 and 4:4:4.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

SDI Color Space

REC 601, REC 709

Analog Video Standards

525i59.94 NTSC, 625i50 PAL

Analog Color Space

REC 601, REC 709

Analog Color Precision

4:2:2

Software

Software Control

Mac™ and Windows™ software upgrade via USB and Ethernet

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac icon

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows Icon

Windows 10, 64-bit.

Settings Control

Basic Settings Control

Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control

Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

Power Supply

1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.

Power Over Ethernet

Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption

16 Watts

Operational Voltage Range

100 - 240V AC

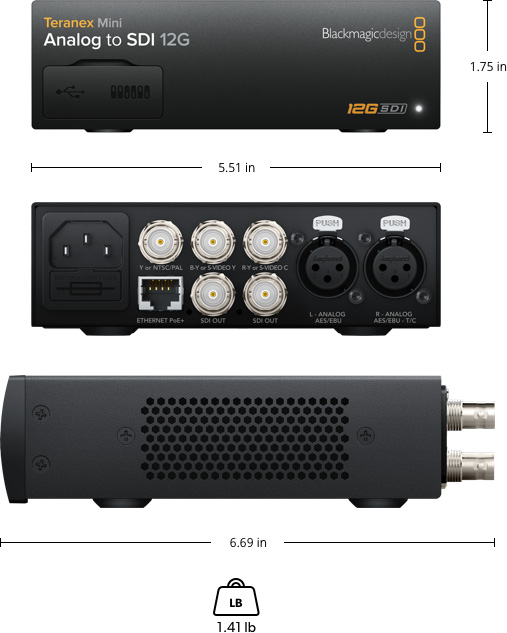

Physical Specifications

Teranex Mini Analog to SDI 12G

Environmental Specifications

Operating Temperature

0° to 40°C (32° to 104°F)

Storage Temperature

-20° to 60°C (-4° to 140°F)

Relative Humidity

0% to 90% non-condensing

What's Included

Teranex Mini Analog to SDI 12G

Welcome wallet with QR code for software download

Warranty

3 year Limited Manufacturer’s Warranty.
