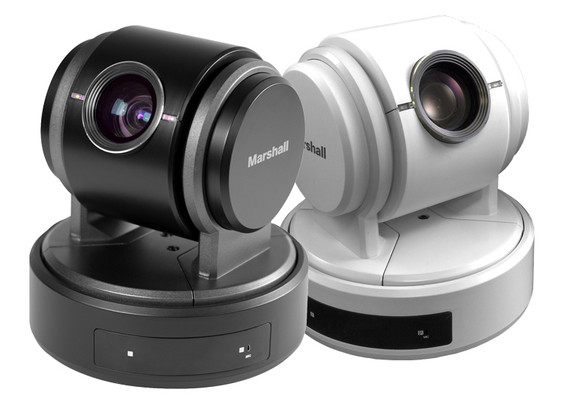

Marshall Electronics CV610-U3W-V2 - 10x HD60 USB/HDI PTZ Camera
Weight:
6.00 LBS
$899.00
- 2-Megapixel HD Sensor
- 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
- Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
- USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
- Full-HD resolutions: 1920x1080p, 1280x720p
- Frame rates: 60, 50, 30, 25 fps
- HDMI output resolution can be set independently of USB output resolutions
- Onboard audio mic & 3.5mm TRS audio jack (optional input)
- Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
- Up to 128 presets with quiet, smooth transitions
- Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0
- Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera
Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.
CV610-U3 Cable (included with camera)
- 1. Camera Port (connect to rear of camera)
- 2. CVBS (non active)
- 3. RS232 Control Port: RX(1), TX(2), GND(3), NC(4)
- 4. Audio line IN (3.5mm jack)
- 5. HDMI video output
- 6. RS422/485 Control Port: GND(1), T+(2), T-(3), R+(4), R-(5)
Marshall Electronics CV610-U3W-V2 - 10x HD60 USB/HDI PTZ Camera
$899.00
- 2-Megapixel HD Sensor
- 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
- Compact overall footprint (approx.): 145mm diameter, 112mm head diameter, 155mm height
- USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
- Full-HD resolutions: 1920x1080p, 1280x720p
- Frame rates: 60, 50, 30, 25 fps
- HDMI output resolution can be set independently of USB output resolutions
- Onboard audio mic & 3.5mm TRS audio jack (optional input)
- Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
- Up to 128 presets with quiet, smooth transitions
- Control via common software UVC codecs, IR Remote, RS232, RS485, and USB 3.0/2.0
- Breakout Cable, USB 3.0/2.0 cable, and 12V Power Cord included with camera
Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0), a wider horizontal Angle-of-View (AOV) at 63°, and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC, teleconference, Pro A/V, or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps, and 1280x720 at 60/50/30/25 fps.
CV610-U3 Cable (included with camera)
- 1. Camera Port (connect to rear of camera)
- 2. CVBS (non active)
- 3. RS232 Control Port: RX(1), TX(2), GND(3), NC(4)
- 4. Audio line IN (3.5mm jack)
- 5. HDMI video output
- 6. RS422/485 Control Port: GND(1), T+(2), T-(3), R+(4), R-(5)
