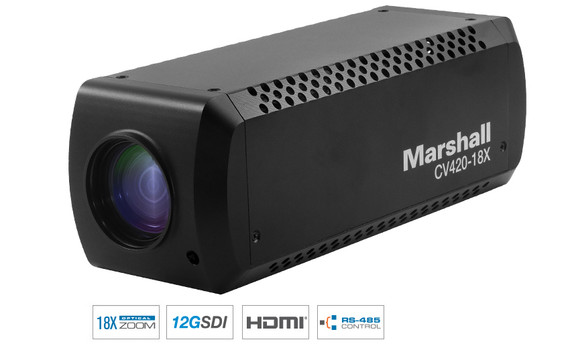

Marshall Electronics CV-420-18X - 18X Zoom True-4K60 12GSDI Camera

No reviews yet
Weight: 3.00 LBS
$2,499.00
Marshall CV420-18X features 18x optical (3x digital) zoom block and flexible 12GSDI/HDMI simultaneous outputs with crystal clear 4K images up to 4096x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.


CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model

Unmatched Versatility

Featuring 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.
CV630-IP is a versatile camera with a 30x optical zoom

Durable Build Construction

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
CV420-18X featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p progressive and 1920x1080i interlaced

Universal Use Cases

Featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p (progressive) and 1920x1080i (interlaced). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frame-rates to capture any workflow or application in every region of the world.
VS-PTC-IP is a PTZ camera controller for CV630-IP camera

Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
  • 12.5 Megapixel 4K Sensor (1/1.7")
  • 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV - 3x Digital
  • 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs
  • 4096x2160p, 3840x2160p, 1920x1080p, 1920x1080i and 1280x720p
  • 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 25.2W max)


Applications:

The CV420-18X is suitable for use in Cinema, Film, Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business

Marshall Electronics CV-420-18X - 18X Zoom True-4K60 12GSDI Camera

$2,499.00

Marshall CV420-18X features 18x optical (3x digital) zoom block and flexible 12GSDI/HDMI simultaneous outputs with crystal clear 4K images up to 4096x2160p at 60fps. Remote adjust and match settings include Iris, Zoom, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.


CV355-10X delivers crystal-clear HD images up to 1920x1080p with all usable framerates on one model

Unmatched Versatility

Featuring 12G/6G/3G-SDI and HDMI2.0 simultaneous outputs, remote adjustable optical zoom range, and stereo audio embedding ability. CV420-18X delivers crystal-clear 4K images up to 4096x2160p with all usable framerates on one model with ultra-low light ability and industry leading low noise performance.
CV630-IP is a versatile camera with a 30x optical zoom

Durable Build Construction

Constructed with a durable aluminum alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
CV420-18X featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p progressive and 1920x1080i interlaced

Universal Use Cases

Featuring a wide range of 4K, UHD and HD selections in 4096x2160p, 3840x2160p, 1920x1080p, 1280x720p (progressive) and 1920x1080i (interlaced). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frame-rates to capture any workflow or application in every region of the world.
VS-PTC-IP is a PTZ camera controller for CV630-IP camera

Broadcast Performance

Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
  • 12.5 Megapixel 4K Sensor (1/1.7")
  • 18x Optical zoom (6.8mm~120mm) starting at 55° H.AOV - 3x Digital
  • 12G/6G/3G-SDI, and HDMI2.0 simultaneous outputs
  • 4096x2160p, 3840x2160p, 1920x1080p, 1920x1080i and 1280x720p
  • 60, 59.94, 50, 30, 29.97, 25, 24 and 23.98fps
  • 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
  • 12V Power cable included (7V~15V, 25.2W max)


Applications:

The CV420-18X is suitable for use in Cinema, Film, Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.
